Schneider Electric XACA282 Pendant Station XAC-A - 2 Pushbuttons
View Brand

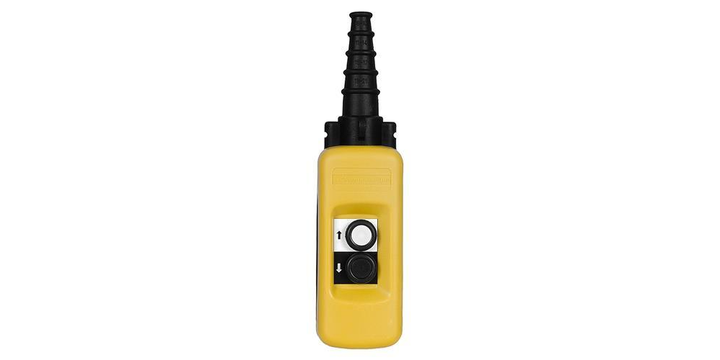

Schneider Electric XACA282 Pendant Station XAC-A - 2 Pushbuttons
Brand:
SCHNEIDER ELECTRIC
Model:
XACA282
Product Description
Schneider Electric XACA282 Harmony Xac Pendant Control Station 2 Pb
Control Station Type: Double insulated
Enclosure Material: Polypropylene
Electrical Circuit Type: Control circuit
Enclosure Type: Complete ready for use
Control Station Application: Control of 2-speed hoist motor
Control Station Composition: 2 push-buttons
Control button type:
1 push-button 1 NC + 1 NO + 1 NO raise, slow-fast
2 push-buttons 1 NC + 1 NO + 1 NO lower, slow-fast
Product Compatibility: XENG1191 for each direction
Mechanical Interlocking: With mechanical interlocking
Control Station Colour: Yellow
Connections - Terminals:
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Standards:
UL 508
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/ISO 13850: 2006
EN/IEC 60204-32
Product Certifications: GOST
Protective Treatment: TH
Ambient Air Temperature for Operation: -25…70 °C
Ambient Air Temperature for Storage: -40…70 °C
Vibration Resistance: 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock Resistance: 100 gn conforming to IEC 60068-2-27
Overvoltage Category: Class II conforming to IEC 61140
IP Degree of Protection: IP65 conforming to IEC 60529
IK Degree of Protection: IK08 conforming to EN 50102
Mechanical Durability: 1,000,000 cycles
Cable Entry: Rubber sleeve with stepped entry 8…26 mm
Contact Code Designation:
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage:
Emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1
600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-1
Contact Operation: Slow-break
Maximum Resistance Across Terminals: 25 MOhm
Operating Force:
13 N push-button
14 N emergency stop
Short-Circuit Protection: 10 A fuse protection by cartridge fuse type gG
Rated Operational Power in W:
40 W DC-13 for 1,000,000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
48 W DC-13 for 1,000,000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
65 W DC-13 for 1,000,000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Terminals Description ISO n°1:
(13-14)NO
(11-12)NC
Terminals Description ISO n°2:
(11-12)NC
(31-32)NC
(21-22)NC
Terminal Identifier:
(11-12)NC
(13-14)NO
Net Weight: 0.5 kg
AU $ 272.92
Units
Discount
Unit Price
1
-
AU $ 272.92
Quantity:
EA
