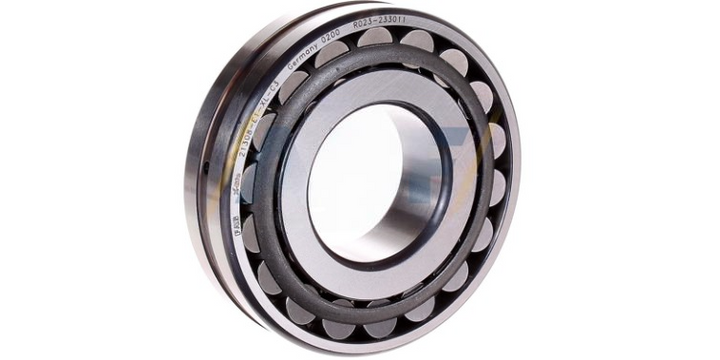

Fag 21308E1XL C3 Spherical Roller Bearing (X-life)

Weight and Dimensions:

• Inner Diameter (d): 40.00 mm
• Outer Diameter (D): 90.00 mm
• Width (B): 23.00 mm
• Weight: 0.749 kg

Product Properties:

• Bore: C - Cylindrical Bore
• Lubrication Enhancement: W33 - Lubrication Groove and 3 Holes
• Seal: No Seal
• Cage Type: S - Steel or Standard Cage
• Radial Internal Play: C3 Internal Play (Higher than Cn)
• Precision: Standard Precision
• Heat Stabilization: No Heat Stabilization - Temperatures up to 120 °C
• Vibrating Screen Execution: Non Vibrating Screen Execution

Data:

• Width (b): 23.00 mm
• Radial Static Load Rating (C0r): 107000 N
• Radial Dynamic Load Rating (Cr): 109000 N
• Basic Static Load Rating, Radial (C0r): 107000.0000 N
• Limiting Speed (nG): 9800.0000 rpm
• Reference Speed (nϑr): 5200.0000 rpm
• ECLASS number: 23-05-09-11
• ECLASS2 number: 23-05-09-11
• Description: Spherical roller bearings 213..-E1, main dimensions to DIN 635-2
