Fag 3209BDXL-2HRSTVH Angular Contact Ball Bearing, Double Row
Fag 3209BDXL-2HRSTVH Angular Contact Ball Bearing, Double Row
Brand: | FAG |
Model: | 3209BDXL-2HRSTVH |
Product Description

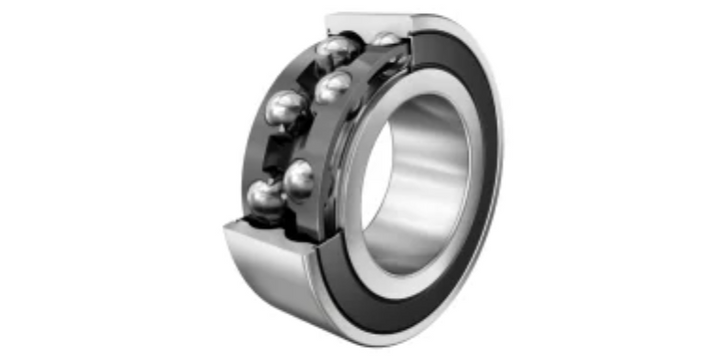

Fag 3209BDXL-2HRSTVH Angular Contact Ball Bearing, Double Row
Category: Angular Contact Ball Bearing, Double Row
Weight and Dimensions:
- Inner Diameter (d): 45 mm (1.7717 inches)
- Outer Diameter (D): 85 mm (3.3465 inches)
- Width (B): 30.2 mm (1.189 inches)
- Weight: 0.64 kg
Product Properties:
- Bore: Cylindrical (C)
- Seal: 2RH - High Speed Low Friction Seal on Both Sides
- Cage Type: Plastic Molded Cage (P)
- External Modification: None
- Radial Internal Play: Normal Internal Play (Cn)
- Precision: Standard Precision
- Lubrication: Standard Lubrication
- Heat Stabilization: Up to 120°C (No Heat Stabilization)
- Split Inner Ring / Outer Ring: Standard
US $ 37.97
