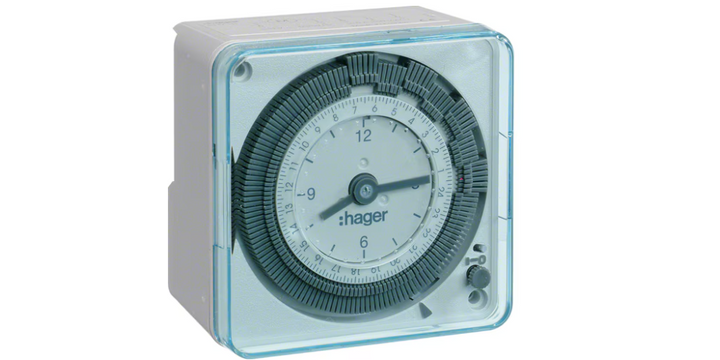

Hager EH711 24Hrs Time Switch
Hager EH711 24Hrs Time Switch
Brand:
HAGER
Model:
EH711
Product Description

Hager EH711 24Hrs Time Switch

Architecture: Surface-mounting
Functions:

  • Number of function channels: 1
  • Switching cycles: Minimum 50,000
  • Configuration: Change-over contact, usable as NC or NO
  • Number of modules: 4

Controls and Indicators:

  • Manual selection switches / push-buttons
  • Rotary switch for temporary on/off switching

Main Electrical Features:

  • Rated operational voltage (Ue): 230 V
  • Frequency: 50 Hz
  • Operating voltage: 230 V~
  • Switching current at cos φ = 0.6: Maximum 3 A

Dimensions:

  • Depth of installed product: 48.5 mm
  • Height of installed product: 72 mm
  • Dimensions (LLxwwxhh): 72 x 72 x 48.5 mm
  • Width of installed product: 72 mm

Power:

  • Power consumed: 0.5 VA
  • Power consumption (operation): 0.5 VA
  • Total power loss under IN: 1 W
  • Loss power at full load: Approximately 1 W

Battery:

  • Charging time of the power reserve: 120 hours

Incandescent Bulbs Control:

  • Max. power with incandescent lamps: 1000 W at 230 V
  • Max. power with halogen lamps: 1000 W at 230 V

Connection:

  • Connection cross-section flexible conductor: 1 / 16 mm²
  • Conductor cross-section (flexible): 1…6 mm²
  • Conductor cross-section (rigid): 1…6 mm²
  • Number of contacts: 1
  • Type of contacts: 1 changeover
  • Type of connection: With screw terminals

Settings:

  • Number of program steps: 72
  • Summer / Winter time change: Manual
  • Shortest switching time: 10 minutes
  • Type of programming: Analog
  • Programming cycle: 24 hours (24H)
  • Program cycles: 24 hours

Equipment:

  • Number of channels: 1
  • Number of switching times for on/off: 72
  • Supply failure reserve: 200 hours
  • Switching cycles at cos φ = 0.6: Minimum 20,000
US $ 25.11
