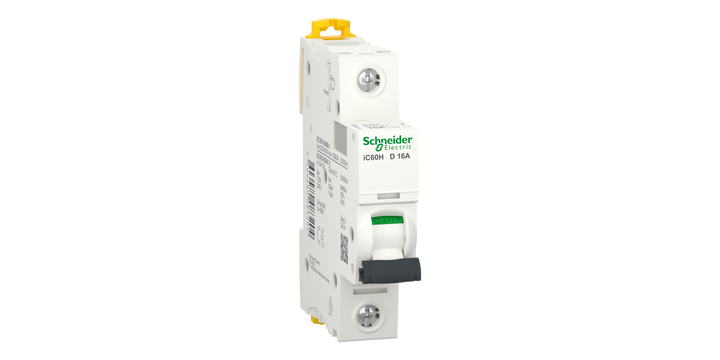

Schneider Electric A9F85116 iC60H - Miniature Circuit Breaker - 1P - 16A - D Curve

• Product Type: Multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals
• Number of Poles: 1P (1 protected pole)
• Rated Current: 16A
• Tripping Curve: D

Short Circuit Breaking Capacity:

• Up to 15kA at 220VAC to 240VAC (conforming to EN/IEC 60947-2 standard)
• Up to 10,000A at 230VAC (conforming to EN/IEC 60898-1 standard)

Standards Compliance:

• Industrial Standard: EN/IEC 60898-1
• Residential Standard: EN/IEC 60947-2

Features:

• Protection: Safeguards against short circuits and overloads
• VisiTrip Indicator: Quickly identifies the faulty circuit to reduce intervention time
• VisiSafe Green Strip: Ensures the physical opening of contacts for safe downstream maintenance
• Fast Closing Mechanism: Enhances durability and service life by operating independently of manual action
• Electrical Endurance: Up to 10,000 cycles
• Mechanical Endurance: Up to 20,000 cycles
• Ui Rated Insulation Voltage: 500VAC
• Limitation Class: 3 (according to EN/IEC 60898-1), optimizing downstream circuit protection costs

Mounting:

• DIN Rail: Designed for easy clipping onto DIN rail
• Width: 2 pitches of 9mm

Environmental and Physical Specifications:

• Pollution Degree: 3
• Overvoltage Category: IV
• Color: White (RAL9003)
• Dimensions:
• Width: 18mm
• Height: 85mm
• Depth: 78.5mm
• Weight: 0.215kg
• IP Rating: IP20 (terminals, as per IEC/EN 60529)
• Operating Temperature: -35°C to 70°C
• Storage Temperature: -40°C to 85°C
