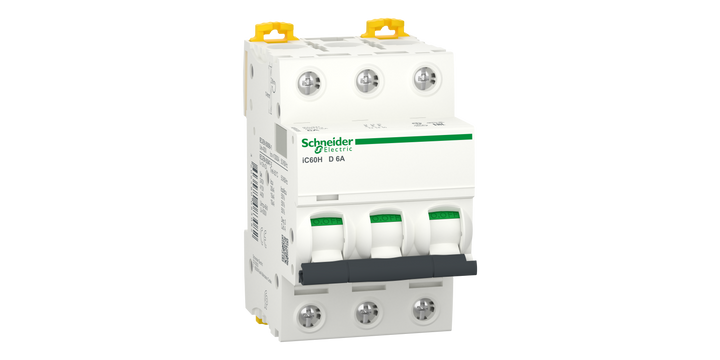

Schneider Electric A9F85306 iC60H - Miniature Circuit Breaker - 3P - 6A - D Curve

The Acti9 iC60H is a versatile low voltage miniature circuit breaker (MCB) featuring double tunnel terminals. It operates as a 3-pole (3P) circuit breaker with a 6A rated current and a D tripping curve. Compliant with both industrial (EN/IEC 60898-1) and residential (EN/IEC 60947-2) standards, it offers a rated short circuit breaking capacity of up to 30kA at 220-240VAC and 10000A at 400VAC.

Key features include:

• VisiTrip indicator for quick fault identification,
• VisiSafe green strip ensuring safe contact opening for maintenance,
• Fast closing mechanism independent of manual operation, enhancing service life.

It boasts electrical endurance of up to 10000 cycles and mechanical endurance of up to 20000 cycles, with a Ui rated insulation voltage of 500VAC. Its limitation class 3 (per EN/IEC 60898-1) optimizes downstream circuit protection costs. Designed for DIN rail mounting, it spans 6 pitches of 9mm in width.

Additional specifications include:

• Pollution degree: 3,
• Overvoltage category: IV,
• Color: White (RAL9003),
• Dimensions: (W) 54mm x (H) 85mm x (D) 78.5mm,
• Weight: 0.375kg,
• IP20 degree of protection (per IEC/EN 60529) on terminals,
• Operating temperature: -35°C to 70°C,
• Storage temperature: -40°C to 85°C.
