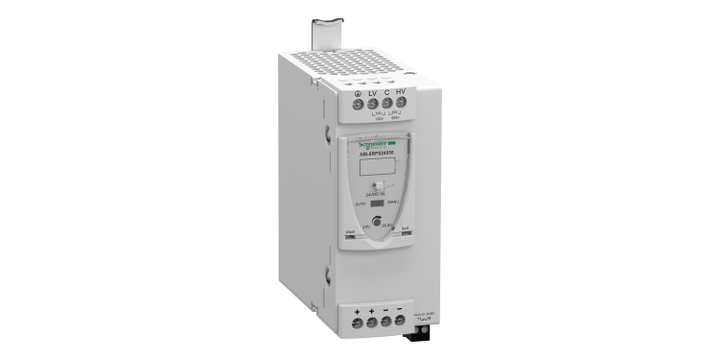

Schneider Electric ABL8RPS24050 1 or 2-phase - Regulated Smps
Schneider Electric ABL8RPS24050 1 or 2-phase - Regulated Smps
Brand: | SCHNEIDER ELECTRIC |
Model: | ABL8RPS24050 |
Specifications
Please select at least one specification below.
Standards
CSA C22.2 No 60950-1
UL 508
EN/IEC 62368-1
Connections - Terminals
Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection
Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection
Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection
Product Certifications
CCSAus
EAC
KC
RCM
UL
Inrush Current
30 A
Status Led
1 LED (green and red) output voltage
1 LED (green, red and orange) output current
Power Supply Output Current
5 A
Product Or Component Type
Power supply
This spec is not available in the specification table.
Range Of Product
Modicon Power Supply
This spec is not available in the specification table.
Mounting Support
35 x 15 mm symmetrical DIN rail
35 x 7.5 mm symmetrical DIN rail
This spec is not available in the specification table.
Efficiency
87 %
This spec is not available in the specification table.
Ip Degree Of Protection
IP20 conforming to IEC 60529
This spec is not available in the specification table.
Ambient Air Temperature For Operation
50…60 °C with derating factor mounting position A < 2000 m
-25…50 °C without derating mounting position A < 2000 m
This spec is not available in the specification table.
Operating Altitude
2000 m
This spec is not available in the specification table.
Marking
CE
This spec is not available in the specification table.
Environmental Characteristic
EMC conforming to IEC 61000-6-1
EMC conforming to IEC 61000-6-3
EMC conforming to EN 55024
EMC conforming to IEC 61000-6-4
EMC conforming to EN/IEC 61204-3
Safety conforming to IEC 60950-1
Safety conforming to EN/IEC 61204-3
This spec is not available in the specification table.
Operating Position
Vertical
This spec is not available in the specification table.
Dielectric Strength
3500 V with between input and ground
4000 V with between input and output
500 V with between output and ground
This spec is not available in the specification table.
Output Voltage
24 V DC
This spec is not available in the specification table.
Provided Equipment
Power factor correction filter conforming to IEC 61000-3-2
This spec is not available in the specification table.
Supply
SELV conforming to IEC 60950-1
SELV conforming to IEC 60204-1
SELV conforming to IEC 60364-4-41
This spec is not available in the specification table.
Power Supply Type
Regulated switch mode
This spec is not available in the specification table.
Nominal Input Voltage
100...120 V AC single phase, terminal(s): N-L1
200...500 V AC phase to phase, terminal(s): L1-L2
This spec is not available in the specification table.
Rated Power In W
120 W
This spec is not available in the specification table.
Input Voltage Limits
85...132 V AC
170...550 V AC
This spec is not available in the specification table.
Power Factor
0.51 at 240 V AC
0.59 at 120 V AC
This spec is not available in the specification table.
Output Voltage Adjustment
24...28.8 V adjustable
This spec is not available in the specification table.
Power Dissipation In W
15.5 W
This spec is not available in the specification table.
Output Protection Type
Against overload, protection technology: manual or automatic reset
Against overvoltage, protection technology: 30...32 V, manual reset
Against short-circuits, protection technology: manual or automatic reset
Against undervoltage, protection technology: tripping if U < 21.6 V
Thermal, protection technology: automatic reset
This spec is not available in the specification table.
Output Coupling
Parallel
Series
This spec is not available in the specification table.
Permissible Temporary Current Boost
1.5 x In (for 4 s)
This spec is not available in the specification table.
Anti-Harmonic Filter
Low frequency harmonic currents
This spec is not available in the specification table.
Product Description
US $ 445.26
