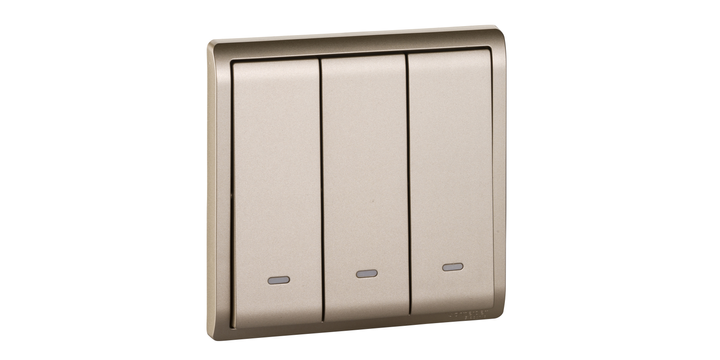

Schneider Electric E8233L1F_WG_G11 Pieno - 16 a 250 V - 3gang 1way Switch With Fluorescent Locator (wg)
Schneider Electric E8233L1F_WG_G11 Pieno - 16 a 250 V - 3gang 1way Switch With Fluorescent Locator (wg)
Brand: | SCHNEIDER ELECTRIC |
Model: | E8233L1F_WG_G11 |
Product Description
Schneider Electric E8233L1F_WG_G11 Pieno - 16 a 250 V - 3gang 1way Switch With Fluorescent Locator (wg)
- Range of Product: Pieno
- Product or Component Type: Switch
- Switch Function: 1-way
- Switch Application: Switch
- Rated Current: 16 AX at 250 V AC 50 Hz
- Local Signalling: Fluorescent (white)
- Number of Gangs: 3 gangs
- Load Type:
- Fluorescent
- Resistive
- Complementary:
- Wiring Device Mounting:
- Surface
- Flush
- Material:
- Polycarbonate: Surround
- Polycarbonate: Grid Plate
- Connections - Terminals:
- Pillar terminals
- Clamping Connection Capacity:
- 2 x 1.5 mm² for stranded cable(s)
- 2 x 2.5 mm² for solid cable(s)
- Dimensions:
- Width: 87 mm
- Height: 87 mm
- Environment:
- Ambient Air Temperature for Operation: -5…40 °C
- Relative Humidity: 0…95 %
- Standards:
- IEC 60669-1
- GB 16915.1
- Product Certifications:
- CCC
US $ 21.26
Quantity:
EA
