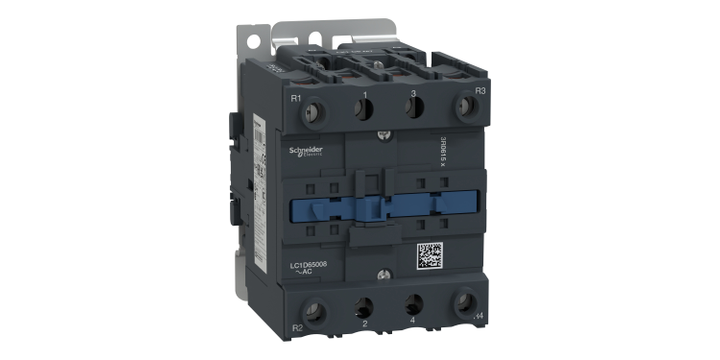

Schneider Electric LC1D65008F7 Tesys D Contactor - 4P(2 No + 2 Nc) - AC-1 <= 440 V 80 a 110 V Ac 50/60 Hz Coil

View Brand

Schneider Electric LC1D65008F7 Tesys D Contactor - 4P(2 No + 2 Nc) - AC-1 <= 440 V 80 a 110 V Ac 50/60 Hz Coil

Brand:	SCHNEIDER ELECTRIC
Model:	LC1D65008F7

Specifications

View other Contactors dimensions or variations

Device Short Name

LC1D

Range Of Product

TeSys Deca

Depth

125 mm

Pole Contact Composition

2 NO + 2 NC

Poles Description

Contactor Application

Resistive load

Compatibility Code

LC1D

Standards

CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508

[Ui] Rated Insulation Voltage

Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Power circuit: 690 V conforming to IEC 60947-4-1

[Uimp] Rated Impulse Withstand Voltage

6 kV conforming to IEC 60947

Mounting Support

Rail Plate

Connections - Terminals

Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: solid without cable end

Height

127 mm

Ip Degree Of Protection

IP20 front face conforming to IEC 60529

Pollution Degree

Mechanical Durability

6 Mcycles

Electrical Durability

1.4 Mcycles 80 A AC-1 at Ue <= 440 V

Operating Altitude

0...3000 m

Tightening Torque

Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mm Power circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

[Ue] Rated Operational Voltage

Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC

[Ie] Rated Operational Current

80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

[Uc] Control Circuit Voltage

110 V AC 50/60 Hz

Inrush power in VA

140 VA 60 Hz cos phi 0.75 (at 20 °C)<br />160 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

13 VA 60 Hz cos phi 0.3 (at 20 °C)<br />15 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

4…5 W at 50/60 Hz

Range

TeSys

Utilisation Category

AC-1

Protective Cover

Without

[Ith] Conventional Free Air Thermal Current

80 A (at 60 °C) for power circuit

Irms Rated Making Capacity

1000 A at 440 V for power circuit conforming to IEC 60947

Rated Breaking Capacity

1000 A at 440 V for power circuit conforming to IEC 60947

[Icw] Rated Short-Time Withstand Current

640 A 40 °C - 10 s for power circuit 900 A 40 °C - 1 s for power circuit 110 A 40 °C - 10 min for power circuit 260 A 40 °C - 1 min for power circuit

Associated Fuse Rating

125 A gG at <= 690 V coordination type 1 for power circuit 125 A gG at <= 690 V coordination type 2 for power circuit

Average Impedance

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Power Dissipation Per Pole

9.6 W AC-1

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control Circuit Type

AC at 50/60 Hz

Coil Technology

Without built-in suppressor module

Control Circuit Voltage Limits

0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz

Operating Time

4...19 ms opening 12...26 ms closing

Auxiliary Contact Composition

3600 cyc/h 60 °C

Protective Treatment

TH conforming to IEC 60068-2-30

Climatic Withstand

conforming to IACS E10 exposure to damp heat

Permissible Ambient Air Temperature Around The Device

-40…60 °C 60…70 °C with derating

Fire Resistance

850 °C conforming to IEC 60695-2-1

Flame Retardance

V1 conforming to UL 94

Mechanical Robustness

Shocks contactor open (8 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms) Vibrations contactor opened (2 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz)

Product Description

Schneider Electric LC1D65008F7 Contactor, Tesys Deca, 4P(2NO+2NC),AC-1 , <=440V, 80 a 110V Ac 50/60Hz Coil, Screw Clamp Terminal

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 80A/690V AC-1. It provides a 110V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
