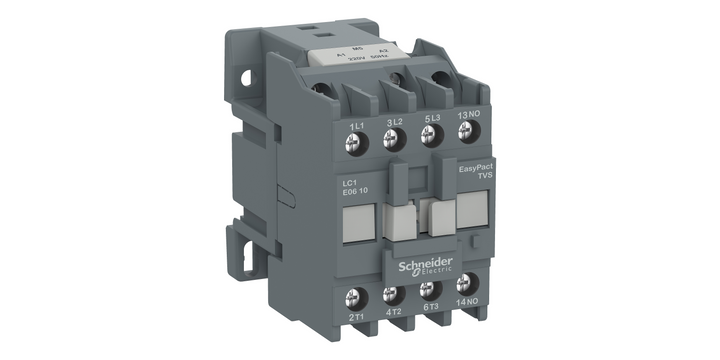

Schneider Electric LC1E2510N5 Contactor,easy Tesys Control,LC1E,3P(3NO),AC-3,<=440V,25A,415V Ac coil,50Hz,1NO Auxiliary Contact
Schneider Electric LC1E2510N5 Contactor,easy Tesys Control,LC1E,3P(3NO),AC-3,<=440V,25A,415V Ac coil,50Hz,1NO Auxiliary Contact
Brand: | SCHNEIDER ELECTRIC |
Model: | LC1E2510N5 |
Product Description
Schneider Electric LC1E2510N5 Contactor,easy Tesys Control,LC1E,3P(3NO),AC-3,<=440V,25A,415V Ac coil,50Hz,1NO Auxiliary Contact
- Type: 3 poles for motor applications
- Rated Current: Up to 25A
- Power Rating: 11 kW @ 440V
- Coil Voltage: 415V AC (50Hz)
- Auxiliary Contacts: 1NO built-in auxiliary contact
- Connections: Power and control via screw clamp terminals
- Width: 45.5mm
- Operating Rate: Up to 1800 cycles/hour
- Durability:
- Electrical: 1.2 million cycles (AC-3)
- Mechanical: 10 million cycles
- Temperature Range: -5°C to 55°C
- Mounting: DIN-rail mountable
- Altitude: No derating up to 3000m
- Certifications: Multi-standard certified (IEC, CCC, EAC)
- Environmental Compliance: Green Premium compliant (RoHS/REACH)
This contactor is engineered for reliable operation in motor applications, ensuring high performance and durability under various conditions.
US $ 44.84
Quantity:
EA
