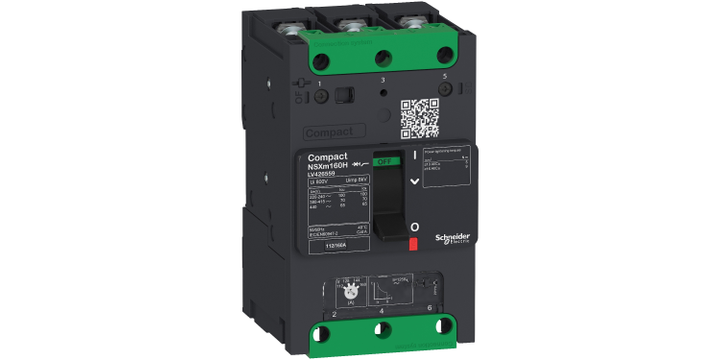

Schneider Electric LV426459 Circuit Breaker Compact Nsxm 160A 3P 50kA at 380/415V(IEC) Compression Lug
Schneider Electric LV426459 Circuit Breaker Compact Nsxm 160A 3P 50kA at 380/415V(IEC) Compression Lug
Brand: | SCHNEIDER ELECTRIC |
Model: | LV426459 |
Specifications
Please select at least one specification below.
Ambient air temperature for operation
-25…70 °C
Protected Poles Description
3D
Network Type
AC
[In] Rated Current
160 A at 40 °C
Network Frequency
50/60 Hz
Standards
EN/IEC 60947
[Ui] Rated Insulation Voltage
800 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage
8 kV
Ip Degree Of Protection
IP40 conforming to IEC 60529
Pollution Degree
3 conforming to IEC 60664-1
Ambient Air Temperature For Storage
-50…85 °C
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Trip Unit Rating
160 A at 40 °C
Trip Unit Technology
Thermal-magnetic
This spec is not available in the specification table.
Trip Unit Protection Functions
LI
This spec is not available in the specification table.
Control Type
Toggle
This spec is not available in the specification table.
Mounting Mode
By screws
Clip-on
This spec is not available in the specification table.
Trip Unit Name
TM-D
This spec is not available in the specification table.
Device Short Name
NSXm 160N
This spec is not available in the specification table.
Product Or Component Type
Circuit breaker
This spec is not available in the specification table.
Range
ComPact
This spec is not available in the specification table.
Product Name
ComPact NSXm
This spec is not available in the specification table.
Range Of Product
ComPact NSXm
This spec is not available in the specification table.
Device Application
Protection
Distribution
This spec is not available in the specification table.
Connection Pitch
35 mm with spreaders
27 mm without spreaders
This spec is not available in the specification table.
Utilisation Category
Category A
This spec is not available in the specification table.
Suitability For Isolation
Yes conforming to EN/IEC 60947-2
This spec is not available in the specification table.
Mounting Support
Plate
DIN rail
This spec is not available in the specification table.
Mechanical Durability
20000 cycles
This spec is not available in the specification table.
Electrical Durability
10000 cycles at 440 V In
20000 cycles at 440 V In/2
5000 cycles at 690 V In
10000 cycles at 690 V In/2
This spec is not available in the specification table.
Earth-Leakage Protection
Without
This spec is not available in the specification table.
Product Certifications
CCC
EAC
Marine
This spec is not available in the specification table.
Ik Degree Of Protection
IK07 conforming to IEC 62262
This spec is not available in the specification table.
Protection Type
L : for overload protection (thermal)
I : for short-circuit protection (magnetic)
This spec is not available in the specification table.
Colour
Grey (RAL 7016)
This spec is not available in the specification table.
Performance Level
N 50 kA 415 V AC
This spec is not available in the specification table.
Number Of Slots For Electrical Auxiliaries
1 slot(s) for auxiliary switch OF
1 slot(s) for alarm switch SD
1 slot(s) for voltage release MN or MX
This spec is not available in the specification table.
9 Mm Pitches
9 module
This spec is not available in the specification table.
Relative Humidity
0…95 %
This spec is not available in the specification table.
Operating Altitude
0...2000 m without derating
2000...5000 m with derating
This spec is not available in the specification table.
[Ics] Rated Service Short-Circuit Breaking Capacity
90 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
[Icu] Rated Ultimate Short-Circuit Breaking Capacity
90 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
Long-Time Pick-Up Adjustment Type Ir (Thermal Protection)
Adjustable
This spec is not available in the specification table.
[Ir] Long-Time Protection Pick-Up Adjustment Range
0.7...1 x In
This spec is not available in the specification table.
Long-Time Protection Delay Adjustment Type Tr
Fixed
This spec is not available in the specification table.
Connection Terminals
compression lug/busbar
This spec is not available in the specification table.
Number Of Poles
3P
This spec is not available in the specification table.
[Im] Magnetic Protection Pick-Up Range
1250 A
This spec is not available in the specification table.
Product Description
