Schneider Electric VCCF1 Tesys Vario - Emergency Stop Switch Disconnector - 32 a - Back of Enclosure

View Brand

Schneider Electric VCCF1 Tesys Vario - Emergency Stop Switch Disconnector - 32 a - Back of Enclosure

Brand:	SCHNEIDER ELECTRIC
Model:	VCCF1

Specifications

View other Switch Disconnectors dimensions or variations

Poles

Rated Current

21.8 A AC-23 Ue: 400 V

Rated Voltage

700 V AC 50/60 Hz

Breaking Capacity

250 A at 400 V (AC-21A) 250 A at 400 V (AC-22A) 250 A at 400 V (AC-23A)

Operating Temperature Range

-20…50 °C

Standards and Certifications

IEC 60947-3

Width

60 mm

Height

74 mm

Ip Degree Of Protection

IP20 conforming to IEC 60529 IP65

Contact Type And Composition

3 NO

Range

TeSys

Product Name

TeSys VARIO

Control Type

Rotary handle

Network Type

DC AC

Mounting Method

By 4 screws for handle By clips for switch By screws for switch

Marking

0 - 1

Device Short Name

VCCF

Device Composition

Shaft extension Switch Handle

Mounting Support

Handle: door Switch: symmetrical rail Switch: plate

Performance Level

High performance

Iec Rated Operational Power In W

11 kW at 500 V (AC-23A) 15 kW at 690 V (AC-23A) 7.5 kW at 500 V (AC-3) 7.5 kW at 690 V (AC-3) 1.5 kW at 230...240 V (AC-3) 5.5 kW at 230...240 V (AC-23A) 11 kW at 400...415 V (AC-23A) 7.5 kW at 400...415 V (AC-3)

[Ith] Conventional Free Air Thermal Current

32 A

[Ithe] Conventional Enclosed Thermal Current

25 A

Making Capacity ( I Rms)

320 A at 400 V AC-21A 320 A at 400 V AC-22A 320 A at 400 V AC-23A

Rated Conditional Short Circuit Current

10 kA at 400 V - associated fuse 35 A aM 10 kA at 400 V - associated fuse 35 A gG

[Icm] Rated Short Circuit Making Capacity

1 kA at 400 V at Ipeak

[Icw] Rated Short Time Withstand Current

384 A at 400 V duration: 1 s

[Uimp] Rated Impulse Withstand Voltage

8 kV

Suitability For Isolation

Yes

Intermittent Duty Class

Rotary Handle Mounting Style

Extended

Handle Color

Red

Handle Front Plate Color

Yellow

Rotary Handle Padlocking

1 to 3 padlocks 4…8 mm

Mechanical Durability

100000 cycles

Electrical Durability

100000 cycles AC-21 30000 cycles DC-1...5

Iec Terminal Connection

Power circuit: screw clamp terminals10 mm² - solid Power circuit: screw clamp terminals6 mm² - flexible - with cable end

Tightening Torque

Power circuit: 2.1 N.m - on screw clamp terminals

Base Dimension

60 x 60 mm

Product Certifications

CSA UL GL CCC UKCA

Protective Treatment

Mechanical Robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-37

Fire Resistance

960 °C conforming to IEC 60695-2-1

Compatibility Code

Main switch disconnector

Product Description

Schneider Electric VCCF1 Switch Disconnector,tesys Control,for ON/emergency stop,32A,4 Screws Fixing,for Mounting at Back of an Enclosure

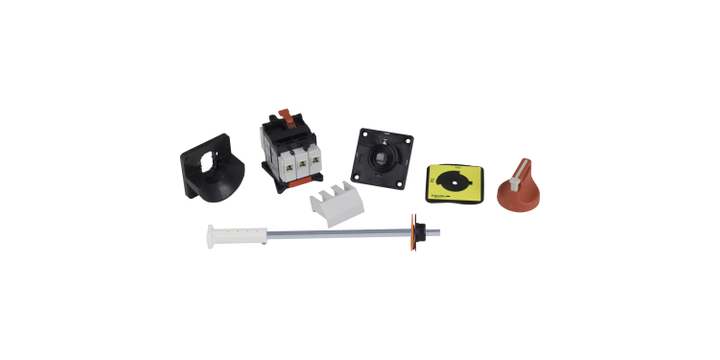

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, an extension shaft VZ17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

US $ 99.59

Quantity:
