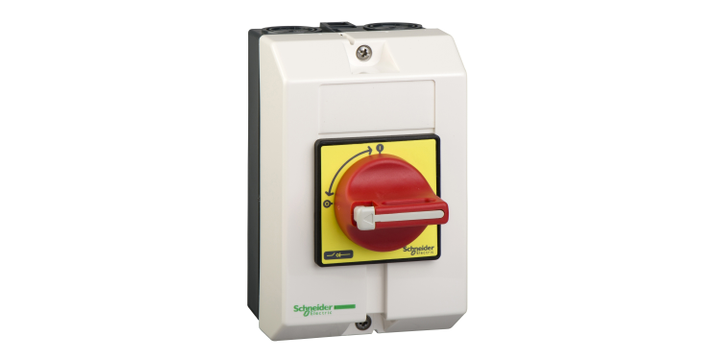

Schneider Electric VCF1GE Enclosed Switch Disconnector,tesys Control,for ON/emergency stop,25A,IP65
Schneider Electric VCF1GE Enclosed Switch Disconnector,tesys Control,for ON/emergency stop,25A,IP65
Brand: | SCHNEIDER ELECTRIC |
Model: | VCF1GE |
Specifications
Please select at least one specification below.
Poles
3P
Rated Current
21.8 A (AC-23A) at 400 V
Rated Voltage
702 V AC 50/60 Hz
Breaking Capacity
250 A at 400 V (AC-21A)
250 A at 400 V (AC-22A)
250 A at 400 V (AC-23A)
Operating Temperature Range
-20…50 °C
Standards and Certifications
IEC 60204
IEC 60947-4-1
Width
90 mm
Depth
131 mm
Height
146 mm
Ip Degree Of Protection
IP65 conforming to IEC 60529
Product Or Component Type
Enclosed emergency stop switch disconnector
This spec is not available in the specification table.
Range
TeSys
This spec is not available in the specification table.
Product Name
TeSys VARIO
This spec is not available in the specification table.
Control Type
Rotary handle
This spec is not available in the specification table.
Marking
0 - 1
This spec is not available in the specification table.
Environmental Characteristic
Standard environment
This spec is not available in the specification table.
Device Short Name
VCF
This spec is not available in the specification table.
Performance Level
High performance
This spec is not available in the specification table.
Iec Rated Operational Power In W
11 kW at 400 V (AC-23)
7.5 kW at 400 V (AC-3)
This spec is not available in the specification table.
[Ithe] Conventional Enclosed Thermal Current
25 A
This spec is not available in the specification table.
Making Capacity ( I Rms)
320 A at 400 V AC-21A
320 A at 400 V AC-22A
320 A at 400 V AC-23A
This spec is not available in the specification table.
Rated Conditional Short Circuit Current
10 kA at 400 V - associated fuse 35 A aM
10 kA at 400 V - associated fuse 35 A gG
This spec is not available in the specification table.
[Icm] Rated Short Circuit Making Capacity
1 kA at 400 V at Ipeak
This spec is not available in the specification table.
[Icw] Rated Short Time Withstand Current
384 A at 400 V duration: 1 s
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
8 kV
This spec is not available in the specification table.
Suitability For Isolation
Yes
This spec is not available in the specification table.
Intermittent Duty Class
30
This spec is not available in the specification table.
Handle Color
Red
This spec is not available in the specification table.
Handle Front Plate Color
Yellow
This spec is not available in the specification table.
Rotary Handle Padlocking
1 to 3 padlocks 4…8 mm
This spec is not available in the specification table.
Mechanical Durability
100000 cycles
This spec is not available in the specification table.
Electrical Durability
100000 cycles AC-21
30000 cycles DC-1...5
This spec is not available in the specification table.
Iec Terminal Connection
Screw clamp terminals10 mm² - solid
Screw clamp terminals6 mm² - flexible - with cable end
This spec is not available in the specification table.
Tightening Torque
2.1 N.m - on screw clamp terminals
This spec is not available in the specification table.
Base Dimension
60 x 60 mm
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
Mechanical Robustness
Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (30 Gn) conforming to IEC 60068-2-39
This spec is not available in the specification table.
Fire Resistance
960 °C conforming to IEC 60695-2-1
This spec is not available in the specification table.
Product Description
Schneider Electric VCF1GE Enclosed Switch Disconnector,tesys Control,for ON/emergency stop,25A,IP65
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 25A 690V, for main and emergency stop switching in motor applications AC-23 up to 11kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V1 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
US $ 158.49
