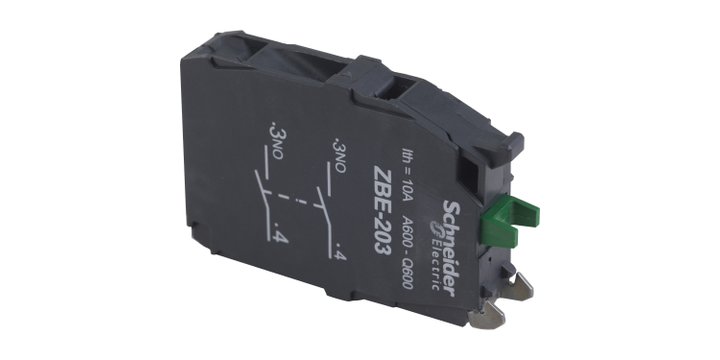

Schneider Electric ZBE203 Double Contact Block's for Head Ø22 2NO Screw Clamp Terminal

Schneider Electric ZBE203 Double Contact Block's for Head Ø22 2NO Screw Clamp Terminal

Brand:	SCHNEIDER ELECTRIC
Model:	ZBE203

Technical Data Sheets

Product Description

Schneider Electric ZBE203 Double Contact Block, Harmony Xb4, Silver Alloy, Screw Clamp Terminal, 2No

This Harmony ZB, double contact block uses screw-clamp terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This double contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

US $ 27.13

Quantity:

EA

This item is sold by

Shop by Specification Table

You can find items with similar specifications from the table below.

pilot-lights-img

IEC 60947-5-1 IEC 60947-1 UL 508 JIS C8201-5-1 CSA C22.2 No 14 JIS C8201-1, IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 IEC 60947-5-1 JIS C8201-1, IEC 60947-5-1 IEC 60947-1 JIS C8201-5-1 CSA C22.2 No 14 UL 508 JIS C8201-1, CSA C22.2 No 14 UL 508 IEC 60947-5-1 IEC 60947-1 JIS C8201-5-1 JIS C8201-1, CSA C22.2 No 14 IEC 60947-1 UL 508 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1

Connections - terminals

Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, Faston connectors, connection size: 2.8 x 0.5 mm, Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1, Faston connectors, connection size: 6.35 x 0.8 mm conforming to IEC 60947-1 Forked type tag connectors, connection size: 6.5 mm conforming to IEC 60947-1 Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

IP Degree of Protection

IP20 (rear face) conforming to IEC 60529 IP54 (front face) conforming to IEC 60529, IP65, IP66, IP67, IP20, IP65, IP40, IP65

[Us] Rated Supply Voltage

230...240 V AC 50/60 Hz, 12...24 V AC/DC, 110...120 V AC at 50/60 Hz, 24 V AC/DC 50/60 Hz, <= 250 V

Cap/Operator Or Lens Colour

Red, Yellow, Blue, Clear, Amber

Current Consumption

14 mA, 15 mA, 18 mA, 20...27 mA, 16...20 mA

24 V ac/dc, 30 V ac/dc, 230 → 240 V ac, 24 V dc, 230 V ac
