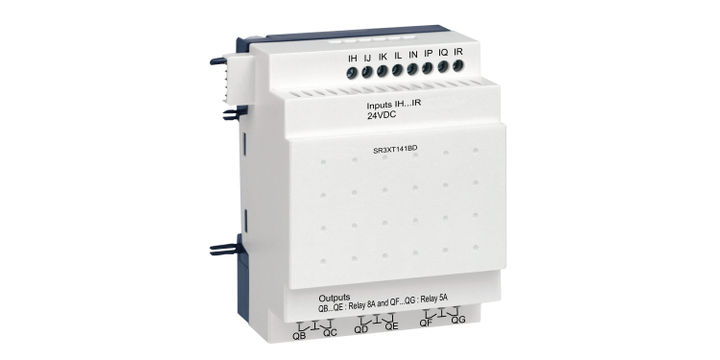

Telemecanique SR3XT141BD Discrete Io Extension Module, Zelio Logic SR2 SR3, 14 Io, 24V Dc

Telemecanique

View Brand

Telemecanique SR3XT141BD Discrete Io Extension Module, Zelio Logic SR2 SR3, 14 Io, 24V Dc

Brand:	Telemecanique
Model:	SR3XT141BD

Specifications

View other Programmable Logic Controllers dimensions or variations

Product Or Component Type

Discrete I/O extension module

Range Of Product

Zelio Logic

Standards

IEC 61000-4-11 IEC 61000-4-6 level 3 IEC 60068-2-27 Ea IEC 60068-2-6 Fc IEC 61000-4-3 IEC 61000-4-4 level 3 IEC 61000-4-5 IEC 61000-4-12 IEC 61000-4-2 level 3

Ip Degree Of Protection

IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529

Relative Humidity

95 % without condensation or dripping water

Ambient Air Temperature For Operation

-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Storage

-40…70 °C

Operating Altitude

2000 m

Product Certifications

C-Tick UL GL CSA GOST

[Us] Rated Supply Voltage

24 V DC

Overvoltage Category

III conforming to IEC 60664-1

Pollution Degree

2 conforming to IEC 61131-2

Discrete Input Number

8 conforming to IEC 61131-2 Type 1

Discrete Input Voltage

24 V DC

Discrete Input Current

4 mA

Input Impedance

12 kOhm for IB...IG used as discrete input circuit 7.4 kOhm for I1...IA and IH...IR discrete input circuit

[Uimp] Rated Impulse Withstand Voltage

4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Number Of Outputs

6 relay

Connections - Terminals

Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid

Mechanical Durability

10000000 cycles for relay output

Electrical Durability

AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1

Tightening Torque

0.5 N.m

Environmental Characteristic

EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2

Current State 0 Guaranteed

<= 0.5 mA (IB...IG used as discrete input circuit) <= 0.75 mA (I1...IA and IH...IR discrete input circuit)

Current State 1 Guaranteed

>= 1.2 mA (IB...IG used as discrete input circuit) >= 2.2 mA (I1...IA and IH...IR discrete input circuit)

Contacts Type And Composition

NO for relay output

Supply Voltage Limits

19.2…30 V

Switching Capacity In Ma

>= 10 mA at 12 V (relay output)

Response Time

10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output

Number Or Control Scheme Lines

120 with ladder programming

Cycle Time

6…90 ms

Backup Time

10 years at 25 °C

Clock Drift

12 min/year at 0…55 °C

Checks

Program memory on each power up

Voltage State 1 Guaranteed

>= 15 V for I1...IA and IH...IR discrete input circuit >= 15 V for IB...IG used as discrete input circuit

Voltage State 0 Guaranteed

<= 5 V for I1...IA and IH...IR discrete input circuit <= 5 V for IB...IG used as discrete input circuit

Output Voltage Limits

24...250 V AC (relay output) 5...30 V DC (relay output)

Output Thermal Current

5 A for 2 outputs for relay output 8 A for 4 outputs for relay output

Operating Rate In Hz

0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output

Disturbance Radiated/Conducted

Class B conforming to EN 55022-11 group 1

Maximum Altitude Transport

3048 m

Reverse Polarity Protection

With

Discrete Input Type

Resistive

Counting Frequency

1 kHz for discrete input

Input Compatibility

3-wire proximity sensors PNP for discrete input

Product Description
