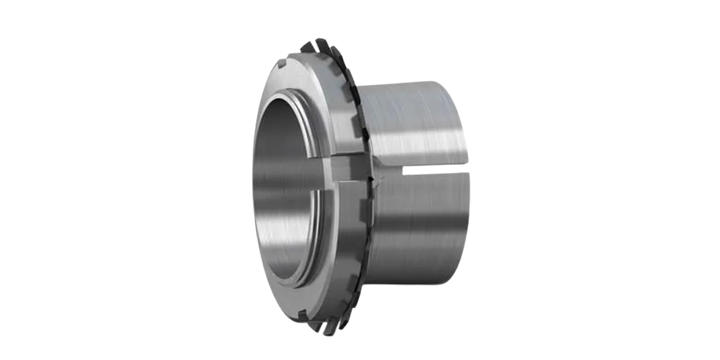

Ntn H/HE 315 Adapter Sleeves
Ntn H/HE 315 Adapter Sleeves
Brand:
NTN
Model:
H/HE 315
Product Description

Ntn H/HE 315 Adapter Sleeves

d1 - Sleeve bore diameter 63,5 mm

d - Internal diameter 75 mm

d2 - Outer diameter of locknut 98 mm

B1 - Sleeve length 55 mm

B2 - Distance between the bearing face and nut rear face 15 mm

G - Thread designation M75X2

Mass 0,88 kg

ex-stock subject to prior sales otherwise 6-8 months

RM 346.50
Quantity:
EA
