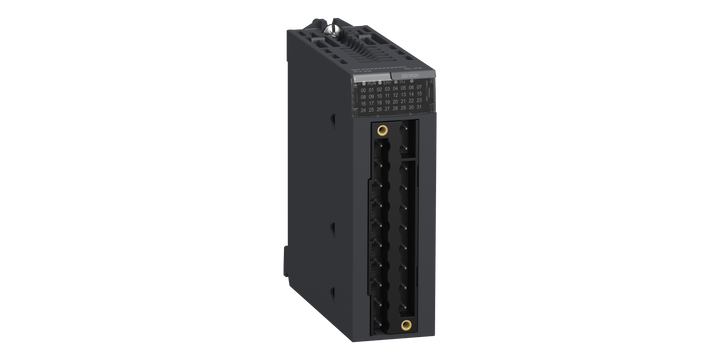

Schneider Electric BMXDDI1602H Discrete Input Module, Modicon X80, 16 Inputs, 24V Dc Positive, for Severe Environments
Schneider Electric BMXDDI1602H Discrete Input Module, Modicon X80, 16 Inputs, 24V Dc Positive, for Severe Environments
Brand: | SCHNEIDER ELECTRIC |
Model: | BMXDDI1602H |
Product Description
Schneider Electric BMXDDI1602H Discrete Input Module, Modicon X80, 16 Inputs, 24V Dc Positive, for Severe Environments
- Series: Modicon X80
- Type: Discrete Input Module
- Channels: 16 input channels
- Supply Voltage: 24V DC (positive)
- Temperature Range: -25°C to +70°C / -13°F to 158°F
- Protection:
- External fuse per group of channels: 0.5A
- Reverse polarity protection (fast blow)
- IP Rating: IP20
- MTBF: 775,163 hours
- Dimensions: 32mm (Width) x 100mm (Depth) x 86mm (Height)
- Weight: 0.115kg
- Applications: Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers, Power generation
- Certifications: CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
- Standards: EN 61000-6-5, EN 61850-3, EN 61131-2 type 3
- Compatibility: Modicon M340, M580 (Local or Remote I/O)
- Terminal Block: 20-way caged, screw clamp, or spring-type removable terminal block
- Installation: Must be installed on the rack and fixed with 2 screws
- Benefits: Reduces spare parts inventory, maintenance, and training costs; compatible platform for various PACs
RM 1,990.00
