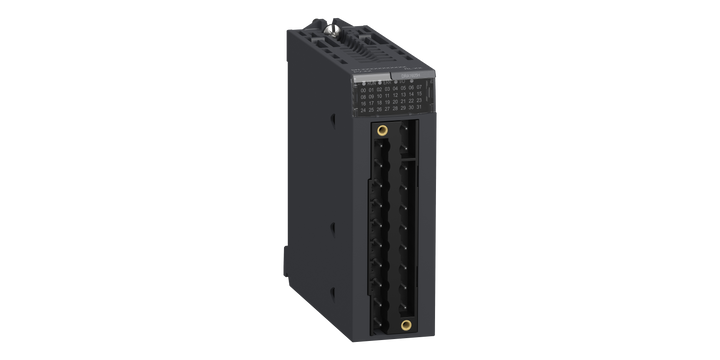

Schneider Electric BMXDRA1605H Discrete Output Module, Modicon X80, 16 No Relay Outputs, 24 to 240V Ac, 24 to 48V Dc, for Severe Environments

• Series: Modicon X80
• Type: Discrete Relay Output Module
• Outputs: 16 normally open relay outputs
• Supply Voltage: 24 to 240V AC / 24 to 48V DC
• Temperature Range: -25°C to +70°C / -13°F to 158°F
• IP Rating: IP20
• MTBF: 2,066,927 hours
• Electrical Durability: 100,000 cycles (24V DC), 300,000 cycles (24V AC), 50,000 cycles (48V DC), 7,000 cycles (240V AC)
• Dimensions: 32mm (Width) x 100mm (Depth) x 86mm (Height)
• Weight: 0.150kg
• Applications: Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers, Power generation
• Certifications: CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
• Standards: EN 61000-6-5, EN 61850-3, EN 61131-2
• Compatibility: Modicon M340, M580 (Local or Remote I/O) PLCs
• Terminal Block: 20-way caged, screw clamp, or spring-type removable terminal block
• Installation: Must be installed on the rack and fixed with 2 screws

Additional Features:

• Rugged Design: Suitable for severe environments
• Common Platform: Reduces maintenance and training costs with the same spare parts and training for different Programmable Automation Controllers (PACs)
