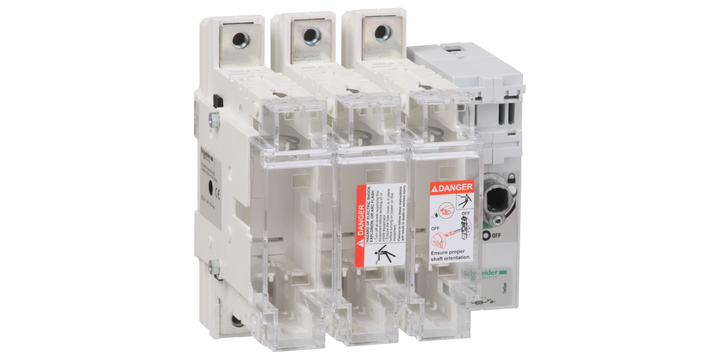

Schneider Electric GS2QQ3 Tesys Gs - switch-disconnector-fuse - 3 P - 400A - Din 2
Schneider Electric GS2QQ3 Tesys Gs - switch-disconnector-fuse - 3 P - 400A - Din 2
Brand: | SCHNEIDER ELECTRIC |
Model: | GS2QQ3 |
Product Description
Schneider Electric GS2QQ3 Tesys Gs - switch-disconnector-fuse - 3 P - 400A - Din 2
Product: TeSys GS Fuse Switch-Disconnector
Type: 3 Poles (3P)
Rated Current: 400A
Voltage Rating: 800V
Key Features:
- Fuse Compatibility: Designed for DIN blade fuse links, size 2, up to 400A.
- Motor Applications: Suitable for motors up to 220kW @ 400V AC-23.
- Short Circuit Current Rating: 50kA @ 400V.
Mounting and Accessories:
- Operating Handle: External handle required, options include front side or right-hand side mounting (GS2AH).
- Terminal Shrouds: Upstream and downstream 3P terminal shrouds (GS1AP43) to be ordered separately.
- Auxiliary Contact Modules: Available for additional functionalities:
- Front mounting: GS1AM
- Side mounting: GS1AN
- Top mounting for blown signaling: GS1AF (with stricker fuses).
Fuse Link Options (to be ordered separately):
- Type aM and gG, Size 2:
- Without strickers: DF2JA, DF2JN
- With strickers: DF4JA, DF4JN
Certifications and Compliance:
- Standards: Multi standards certified (IEC, Marine).
- Environmental Compliance: Green Premium compliant (RoHS/REACh).
RM 6,432.50
Quantity:
EA
