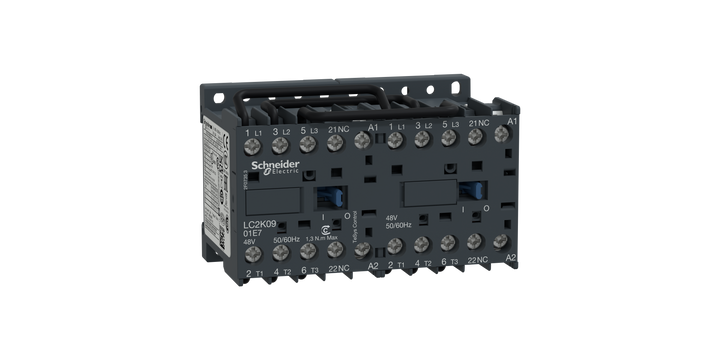

Schneider Electric LC2K0901M7 Tesys K Reversing Contactor - 3P - AC-3 <= 440 V 9 a - 1 Nc - 220...230 Vac Coil

The TeSys K reversing contactor features 3 poles (3NO) designed for motor control applications up to 9A and 690V AC-3 (4kW @ 400V).

Specifications:

• Coil Voltage: 220V AC, 50/60Hz
• Auxiliary Contacts: 2NC built-in
• Connection Type: Screw clamp terminals
• Operating Rate: Up to 600 cycles/hour (AC-3)
• Temperature Range: Suitable for environments up to 50°C

Features:

• Compact Size: 90mm width
• Mounting Options: DIN-rail or screw fixing
• Connections: Pre-wired reversing power connections
• Mechanical Interlock: Includes mechanical interlock (without electrical interlocking)

Certifications:
Multi-standard certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHS/REACH).

This contactor provides reliability and durability for standard motor control applications.
