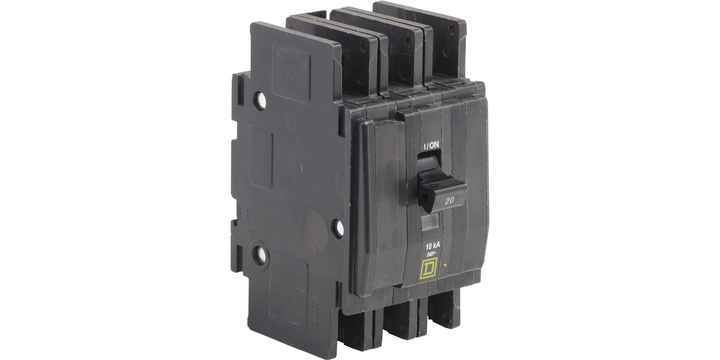

Schneider Electric QOU325VH5283 Qou Miniature Circuit Breaker, 25A, 3P, 240V, 22kA, Ring Terminal
Schneider Electric QOU325VH5283 Qou Miniature Circuit Breaker, 25A, 3P, 240V, 22kA, Ring Terminal
Brand: | Square D |
Model: | QOU325VH5283 |
Product Description
Schneider Electric QOU325VH5283 Qou Miniature Circuit Breaker, 25A, 3P, 240V, 22kA, Ring Terminal
QO™ and QOU Miniature Circuit Breakers, QOU325VH5283, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Comes with factory installed ring tongue terminal.QOU breakers are able to operate up to 22 kA short ciruit current.
- Product or Component Type: Miniature circuit-breaker
- Range of Product: QOU
- Circuit Breaker Type: Standard
- Circuit Breaker Application: HACR rated
- Line Rated Current: 25 A
- Electrical Connection:
- Slotted ring tongue, line side
- Slotted ring tongue, load side
- Rated Operational Voltage ([Ue]): 120/240 V AC
- Mounting Mode: Unit mount
- AWG Gauge: AWG 14...AWG 2 aluminium/copper
- Height: 4.05 in (102.87 mm)
- Width: 2.25 in (57.15 mm)
- Depth: 2.95 in (74.93 mm)
- Tightening Torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
RM 5,177.00
