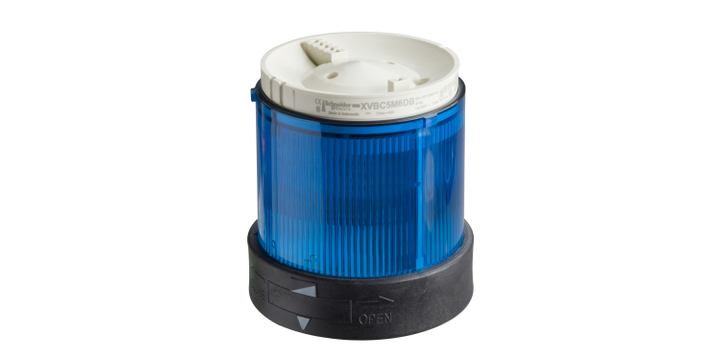

Schneider Electric XVBC36 Indicator Bank, Harmony Xvb, Illuminated Unit, Plastic, Blue, 70mm, Steady, Bulb or Led Not Included, 250V
Schneider Electric XVBC36 Indicator Bank, Harmony Xvb, Illuminated Unit, Plastic, Blue, 70mm, Steady, Bulb or Led Not Included, 250V
Brand: | SCHNEIDER ELECTRIC |
Model: | XVBC36 |
Specifications
Please select at least one specification below.
Material
Polycarbonate
Range Of Product
Harmony XVB Universal
Standards
EN/IEC 60947-5-1
Ip Degree Of Protection
IP65 on fixing base XVBZ0. conforming to IEC 60529
IP66 on base unit conforming to IEC 60529
[Us] Rated Supply Voltage
<= 250 V
Mounting Diameter
70 mm
Light Source
Bulb not included, blue
Signalling Type
Steady
Bulb Type
Incandescent with BA 15d base
Protected LED
Product Or Component Type
Indicator bank
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…50 °C: LED
-25…70 °C: incandescent
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Shock Protection Class
Class I on support tube conforming to IEC 61140
Class II on base unit conforming to IEC 61140
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
250 V conforming to IEC 60947-1
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
This spec is not available in the specification table.
Pollution Degree
2
This spec is not available in the specification table.
Product Certifications
CCC
EAC
CSA C22-2 No 14
UL 508
This spec is not available in the specification table.
Assembly Style
Customer assembly, up to 5 units
This spec is not available in the specification table.
Nema Degree Of Protection
Type 4X conforming to UL (indoor)
This spec is not available in the specification table.
Component Name
XVBC
This spec is not available in the specification table.
Beacon Or Indicator Bank Unit Type
Illuminated unit
This spec is not available in the specification table.
Nominal Voltage Limit
0.85...1.1 Un conforming to IEC 60947-5-1
This spec is not available in the specification table.
Maximum Power Dissipation In W
7 W
This spec is not available in the specification table.
Product Description
RM 154.50
